ATT Mini Flat Foot Car Insert Fuse

Specifications

According to the using status, the fuse characteristics may change.

Rated voltage: DC less than 32V, Selection of high order material available to 48V

Breaking capacity: 1000A@60V, DC, temperature: -40 ℃ ~ +125 ℃

Material: 1、zinc alloy , 2、 PC plastic/Nylon.

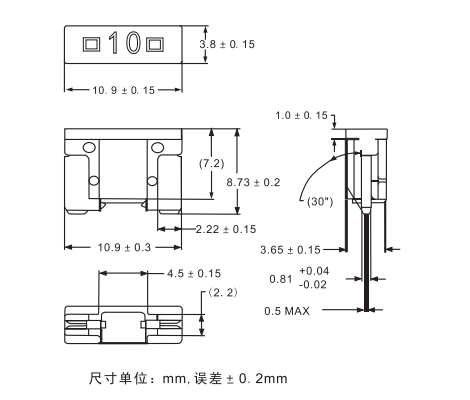

Dimensions

FUSE PARAMETERS

Prt Number	Rating Current(A)	Rating Voltage(V)	Typ. Voltage Drop(mV)	Cold Resistance	I2t	Color
				(mΩ)
LDMINI-02	2A	32V/48V/58V	171	55.6	2.8	celandine
LDMINI-03	3A	32V/48V/58V	153	33.75	9.4	Purple
LDMINI-04	4A	32V/48V/58V	121	23.48	17	Pink
LDMINI-05	5A	32V/48V/58V	129	17.75	25	Orange
LDMINI-075	7A	32V/48V/58V	135	10.85	68	Tan
LDMINI-10	10A	32V/48V/58V	108	7.42	93	Red
LDMINI-15	15A	32V/48V/58V	98	4.58	270	Blue
LDMINI-20	20A	32V/48V/58V	96	3.21	380	Yellow
LDMINI-25	25A	32V/48V/58V	86	2.36	625	Natural
LDMINI-30	30A	32V/48V/58V	87	1.85	1130	Green

Time-Current Characteristics:

% of Rating	Opening Time Min / Max (s)
110	360,000 s / –
135	0.75 s / 600 s
200	0.15 s / 5 s
350	0.080 s / 0.250 s
600	0.030 s / 0.100 s

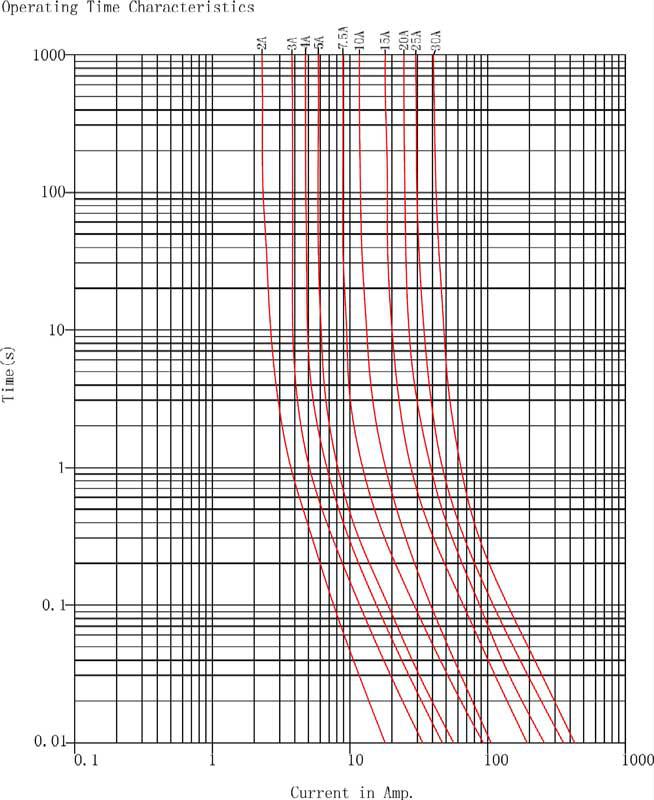

Time-Current Characteristic Curves:
