ATN Mini Small Car Insert Fuse

Specifications

Breaking force：1000A@80VDC

Voltage Rating：32-48-58-80VDC

Operating Temperature Range：-40˚C to ~200˚C

Terminals: Ag plated zinc alloy

Housing Materials: Nylon/PC

Standards compliant: SAE J2077、ISO 8820、UL 248 Special Purpose Fuses

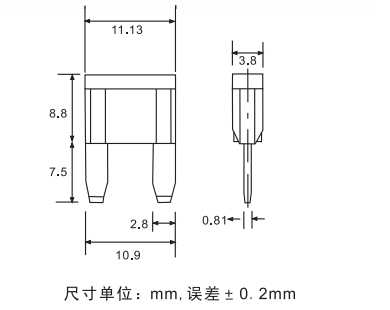

Dimensions

Time-Current Characteristics

% of Rating	Opening Time
	MINI	MAX
110	4H	/
135	0.75S	10m
200	0.15S	5S
350	0.080S	0.250S
600	0.030S	0.100S

FUSE PARAMETERS:

Part Number	Current Rating	Voltage Rating	Typ. Voltage Drop	Cold Resistance	I2t	Housing Color
		(V DC)
LDMIN-01	1A	32/48/58/80	179 mV	70 mΩ	0.97A²s	Black
LDMIN-02	2A	32/48/58/80	171 mV	55.60 mΩ	2.8 A²s	Gray
LDMIN-03	3A	32/48/58/80	153 mV	33.75 mΩ	9.4 A²s	Purple
LDMIN-04	4A	32/48/58/80	121 mV	23.48 mΩ	17 A²s	Pink
LDMIN-05	5A	32/48/58/80	129 mV	17.75 mΩ	25 A²s	Orange
LDMIN-7.5	7.5A	32/48/58/80	135 mV	10.85 mΩ	68 A²s	Brown
LDMIN-10	10A	32/48/58/80	108 mV	7.42 mΩ	93 A²s	Red
LDMIN-15	15A	32/48/58/80	98 mV	4.58 mΩ	270 A²s	Blue
LDMIN-20	20A	32/48/58/80	96 mV	3.21 mΩ	380 A²s	Yellow
LDMIN-25	25A	32/48/58/80	86 mV	2.36 mΩ	625 A²s	Natural
LDMIN-30	30A	32/48/58/80	87 mV	1.85 mΩ	1130 A²s	Green
LDMIN-35	35A	32/48/58/80	85mV	1.5mΩ	1430 A²s	Purplish red
LDMIN-40	40A	32/48/58/80	82mV	1.32mΩ	1430 A²s	Purplish red

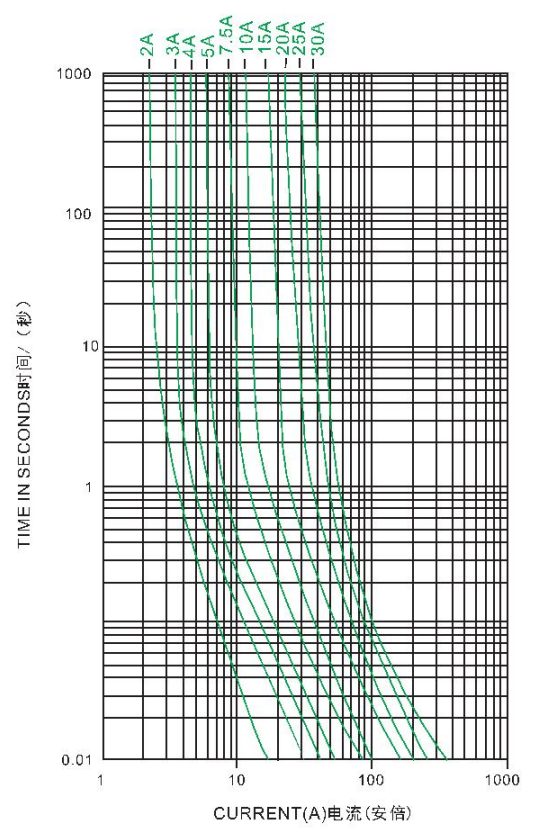

Time-Current Characteristic Curves:
