ATM Large Car Insert Fuse

Specifications

Breaking force：1000A@80VDC

Voltage Rating：32-48-58-80VDCC

Operating Temperature Range：-40˚C to ~200˚C

Terminals: Ag plated zinc alloy

Housing Materials: Nylon/PC

Standards compliant: SAE J2077、ISO 8820、UL 248 Special Purpose Fuses

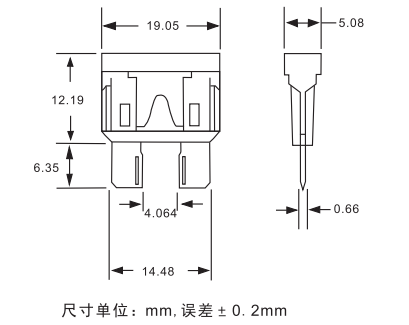

Dimensions

FUSE PARAMETERS

TYPE	Rating Current(A)	Rating Voltage(V)	Typ. Voltage Drop(mV)	Cold Resistance	I2t	Color
				（mΩ）
LDMAX-20	20A	32V/48V/63V/80V/125V	76	3.1	1100	yellow
LDMAX-25	25A	32V/48V/63V/80V/125V	75	2.39	2087	Grey
LDMAX-30	30A	32V/48V/63V/80V/125V	77	1.95	4070	green
LDMAX-40	40A	32V/48V/63V/80V/125V	75	1.71	6032	amber
LDMAX-50	50A	32V/48V/63V/80V/125V	75	1.42	8450	red
LDMAX-60	60A	32V/48V/63V/80V/125V	73	1.1	11300	blue
LDMAX-70	70A	32V/48V/63V/80V/125V	77	0.89	15300	brown
LDMAX-80	80A	32V/48V/63V/80V/125V	61	0.64	6900	white
LDMAX-100	100A	32V/48V/63V/80V/125V	52	0.45	9600	brown

Time-Current Characteristics:

% of Rating	Opening Time
	MINI	MAX
110	4H	/
135	60S	1800S
200	2 S	60 S
350	0.20S	7S
600	0.040S	1S

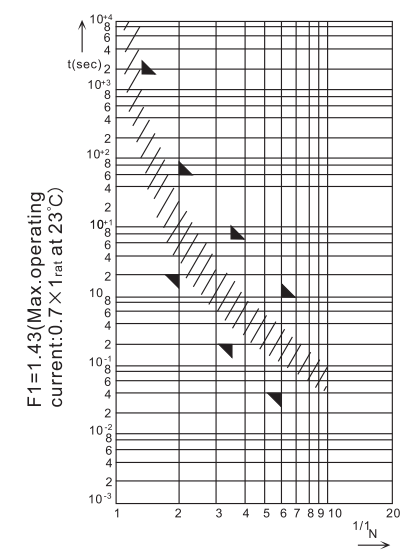

Time-Current Characteristic Curves:
