ATC medium size automotive plug-in fuse

Specifications

Breaking force：1000A@80VDC

Voltage Rating：32-48-58-80-125VDC

Operating Temperature Range：-40˚C to ~200˚C

Terminals: Ag plated zinc alloy

Housing Materials: Nylon/PC

Standards compliant: SAE J2077、ISO 8820、UL 248 Special Purpose Fuses

Dimensions

FUSE PARAMETERS

Prt Number	Rating Current(A)	Rating Voltage(V)	Typ.	ColdResistance	I2t	Color
			Voltage Drop	Kaltwiderstand
			(mV)	(mΩ)
LDATC-01	1A	32V/48V/63V/80V/125V	176	123	0.4	Blue Ash
LDATC-02	2A	32V/48V/63V/80V/125V	141	53.5	1.4	celandine
LDATC-03	3A	32V/48V/63V/80V/125V	137	31.1	7.4	Purple
LDATC-04	4A	32V/48V/63V/80V/125V	136	22.8	14	Pink
LDATC-05	5A	32V/48V/63V/80V/125V	128	17.85	26	Orange
LDATC-7.5	7.5A	32V/48V/63V/80V/125V	116	10.91	60	Tan
LDATC-10	10A	32V/48V/63V/80V/125V	109	7.7	115	Red
LDATC-15	15A	32V/48V/63V/80V/125V	102	4.8	340	Blue
LDATC-20	20A	32V/48V/63V/80V/125V	98	3.38	520	Yellow
LDATC-25	25A	32V/48V/63V/80V/125V	92	2.52	1080	Natural
LDATC-30	30A	32V/48V/63V/80V/125V	84	1.97	1510	Green
LDATC-35	35A	32V/48V/63V/80V/125V	87	1.61	2280	Purp red
LDATC-40	40A	32V/48V/63V/80V/125V	96	1.44	3310	Purp red

Time-Current Characteristics:

% of Rating	Opening Time	Opening Time Min / Max (s)
	Nennstrom
100	35~40	360,000 s / –
110	1~30	360,000 s / –
135	1~2	500Ms~600ms
	3~40	0.75 s / 600 s
200	1~2	100ms~5s
	3~40	0.15 s / 5 s
350	1~40	0.080 s / 500ms
600	1~40	100ms / 150ms

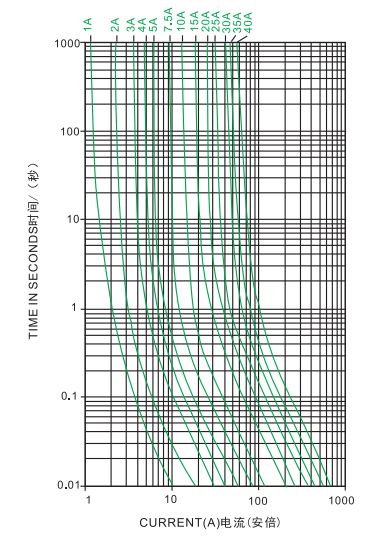

Time-Current Characteristic Curves:
