Automotive high-voltage plug-in fuse 80V

Specifications

Breaking force：1000A@80V

Voltage Rating：58-80VDC

Operating Temperature Range：-40˚C to ~200˚C

Terminals: Copper tin plating

Housing Materials: Nylon

Standards compliant: SAE J2077、ISO 8820、UL 248 Special Purpose Fuses

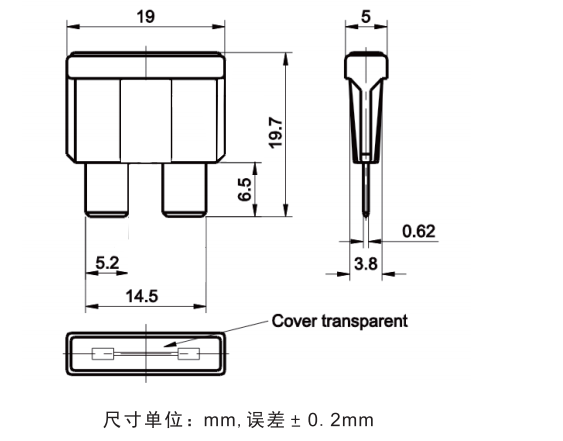

Dimensions

FUSE PARAMETERS

Prt Number	Rating Current(A)	Rating Voltage(V)	ColdResistance	Color
			(mΩ)
LDATC-NL-01	1A	58V/80V	108	Blue Ash
LDATC-NL-02	2A	58V/80V	45.0	celandine
LDATC-NL-03	3A	58V/80V	30.0	Purple
LDATC-NL-05	5A	58V/80V	15.0	Orange
LDATC-NL-7.5	7.5A	58V/80V	10.3	Tan
LDATC-NL-10	10A	58V/80V	7.20	Red
LDATC-NL-15	15A	58V/80V	5.80	Blue
LDATC-NL-20	20A	58V/80V	3.60	Yellow
LDATC-NL-25	25A	58V/80V	3.10	Natural
LDATC-NL-30	30A	58V/80V	2.10	Green
LDATC-NL-35	35A	58V/80V	1.90	Light green
LDATC-NL-40	40A	58V/80V	1.60	Orange

Time-Current Characteristics:

% of Rating	Opening Time Min / Max (s)
110	4H / –
135	0.75 s / 10min
200	0.15 s / 5 s
350	0.080 s / 0.250s
600	0.030s / 0.100s

Time-Current Characteristic Curves:
